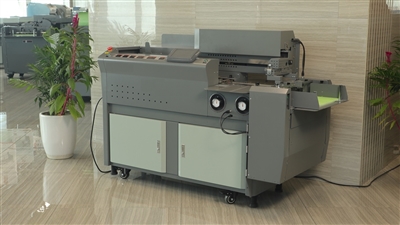

BDTS310PCCF High Production Professional Series
Automated Glue Binding Sewing Machine with dual carriage speed production. 2.4" book thickness capacity. Hourly capacity of 300 to 400 Books per hour. Operation speed dual-function technology. Variable Frequency drive makes extremely accurate cover placement. Book length up to 16". With a 7" Touch Screen Programming which includes Multiple Program modes, Production Speed, Glue Temperature, Service logic. Deep glue penetration by a carbide insert tip milling with up to 9 times the life of normal cutters. Side gluing for a stronger cover bonding. A high wall cover nipping station for a smooth side glue adhesion. 3 Glue Rollers, 2 Sides Rollers, 1 Penetration Roller with Wiper Roller. Adjustment to remove excess glue from book end. High Viscosity Vacuum System to remove chips/dust. Cast Machined Aluminum frame and Body.
Includes Fume Extraction attachment and PCCF Cover Feeder. Optional Stackers Available.
Perfect Binder with Feeder
Perfect Binder with Feeder
Perfect Binder with Feeder
- Model: BDTS3
- Max Bind Length: 16+”
- Max Thickness: 2.4”
- Spine Coverage: Close stitch / 3 Glue Roller Configuration
- Production Speed: 300 to 400 Documents Per Hour/ 600 cycles Per Hour
- Drive: Variable Frequency
- Operating Modes: Dual Speed Mode Production for Standard or Glossy Material
- Warm Up Time: 35 Minutes
- Milling Cutter: Solar Carbide Milling Cutter and Notcher
- Waste Removal: Heavy Chip/Dust Vacuum System
- Cover Clamp: Automatic
- Book Clamp: Automatic
- Side Gluing: Yes- with Auto Book Adjustment
- Mill Folding Pages: 3 Folding Signatures
- Display: 7" Color Touch Screen Programming
- Adjustable Cover Nipping: Yes
- Built in Diagnostics: Yes
- Excess Glue Removal Function: Yes
- Optional Fume Exhaust Function Available: Yes
- Optional In-Line Cover Feeders: Yes
- Optional SO BDTS3L:4 roller system.
- Dimensions: 80”X 31.5”X 44.5”
- Weight: 1270
- Shipping Dimensions: 85”X40”X54”
- Shipping Weight: 1350 lbs.
- Power Requirements: 220V single phase or special order 110V +-10% 60Hz
- *Specifications Subject to Change without Notice
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Variable Frequency Drive
- Close stitch operation
- Side stitching and gluing to provide a strong cover adhesion.
- 3 Roller Spine Gluing (2 side, penetration-1 cleaning/wiping)
Special order BDTS3L, (4 glue rollers 2 side, 2 LV penetration, 1 cleaning/wiping} - Dual Mode Production with Cycle speed to produce 400 books per hour.
- Integrated chip/dust extraction system.
- Convenient Cabinet to store supplies.
- Machined Aluminum Frame and Body.
- 7" Touch Pad Color display with multiple program modes and more.
|
|
|
|
|
|
|
Production Bind
